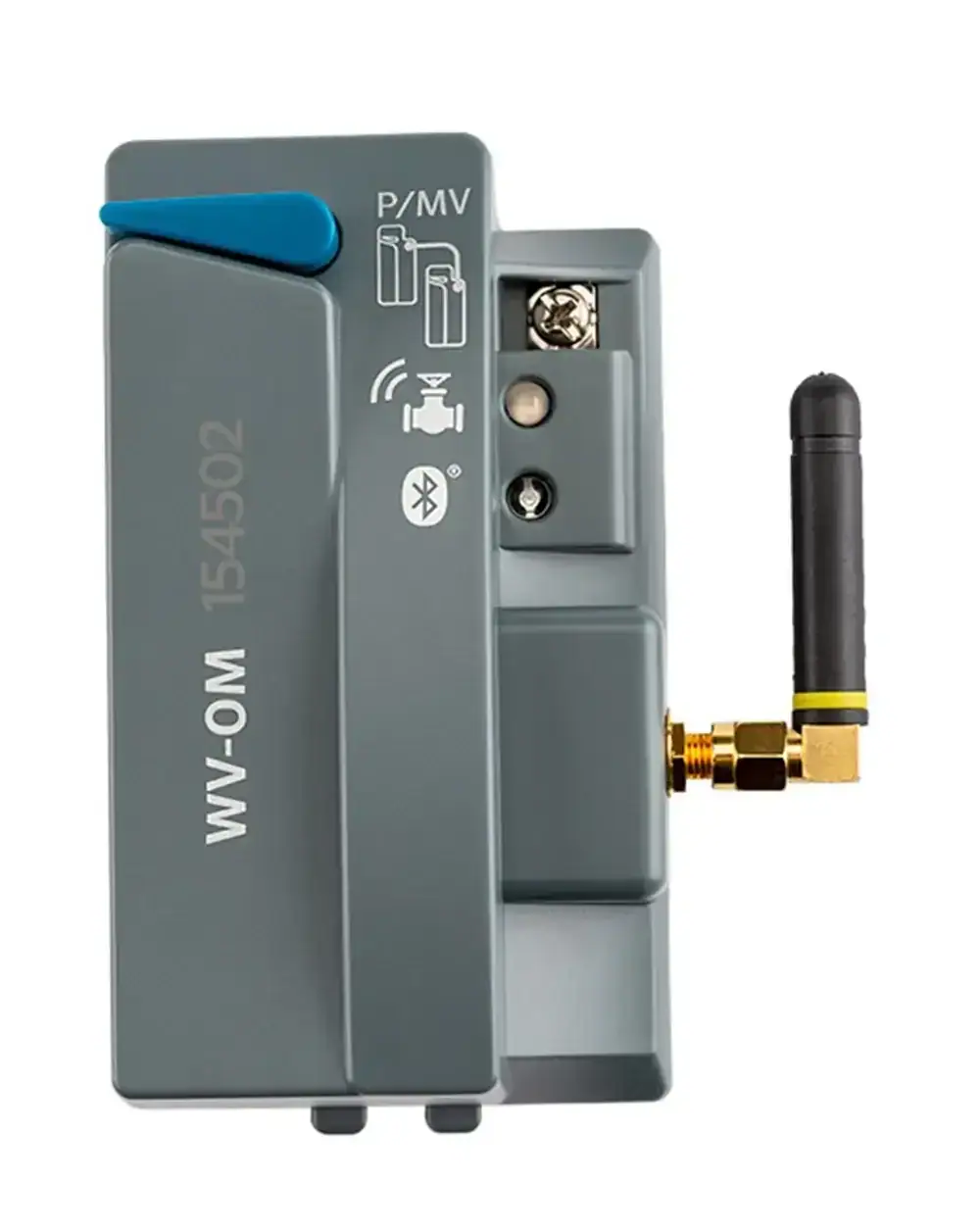

Hunter Wireless Valve Output Module

Say Goodbye to Wires: Introducing the Hunter Wireless Valve Output Module (WVOM)

Simplify your irrigation system expansion and management with the Hunter Wireless Valve Output Module (WVOM). This innovative module plugs into your Hunter ICC2 or HCC controller, enabling seamless wireless control of sprinkler valves up to 2,000 feet away, and even further with an optional repeater.

Eliminate the hassle and cost of running wires across your property, making installations and expansions easier than ever before.

Key Features and Benefits:

• Wireless Freedom: Control up to 54 valves plus a pump/master valve without the need for extensive wiring.
• Long-Range Communication: Utilizes license-free LoRa® wireless technology for reliable communication up to 2,000 feet (600 meters) line-of-sight, and even more with a repeater.
• Works with Hunter Controllers: Specifically designed for compatibility with Hunter ICC2 and HCC controllers.
• Centralized Management: Fully compatible with Hunter’s Centralus™ and Hydrawise® irrigation management platforms for convenient remote control and monitoring via a mobile app or computer.
• Easy Installation: The WVOM module installs easily into any compatible output module slot of your ICC2 or HCC controller.
• Flexible System Design: Combine with conventional wired modules (ICM or EZDS) in the same controller for ultimate flexibility in managing diverse landscapes.
• Cost and Time Savings: Reduce contractor costs associated with copper wire and unnecessary excavation for connecting or repairing distant valves.
• Immunity to Wire Issues: Wireless signals are not susceptible to common wired system problems like wire degradation and lightning damage.
• Simple Setup and Diagnostics: Use the free Hunter WVL App (available for iOS® and Android™) via Bluetooth® for easy setup, configuration, and diagnostics of the wireless valve system.
• Two-Way Communication: Confirms field performance and provides feedback on battery and signal strength.


  Applications:

  The Hunter Wireless Valve Output Module is ideal for a wide range of applications, including:

  • Expanding existing irrigation systems without running new wires.
  • Irrigating areas separated by hardscapes like sidewalks and driveways without cutting into them.
  • Bypassing problematic or damaged existing wiring.
  • Large residential and commercial landscapes.
  • Remote areas where wiring is difficult or costly

Technical Specifications:

• Compatibility: Hunter ICC2 and HCC Controllers.
• Wireless Technology: 900 MHz LoRa® radio (North America only).
• Maximum Valves: Up to 54 plus Pump/Master Valve.
• Wireless Range: Up to 2,000 feet (600 meters) line-of-sight, extendable with a repeater.
• Valve Compatibility: Operates Hunter DC-Latching Solenoids (P/N 458200).
• Power for Wireless Valve Links (WVLs): One or two 9 VDC batteries per WVL, with solar recharging option (SP-WVL) available.
• Approvals: WVL in-box control links: IP68 (submersible); RPT Wireless Solar Repeater: IP55 (outdoor); UL, cUL, FCC, CE, UKCA, RCM, ISED.
• Warranty: 2 years
