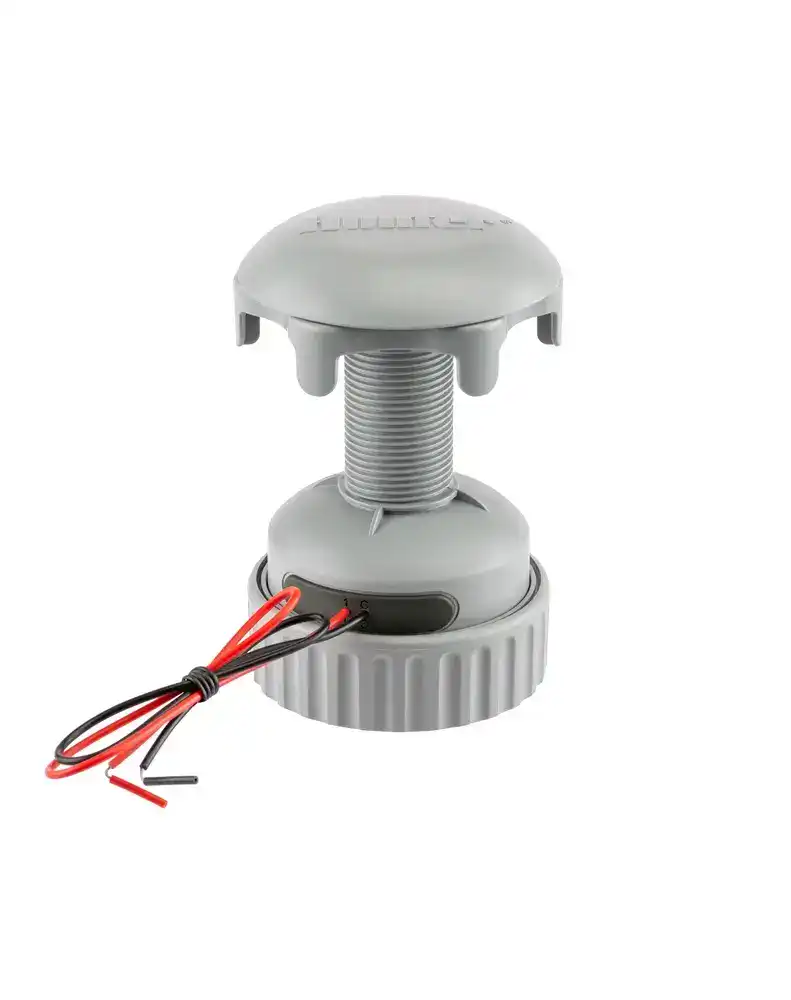

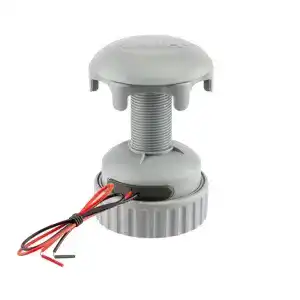

Hunter Wireless Valve Link
Hunter Wireless Valve Link
Enable convenient wireless valve control for ICC2 and HCC Controllers with the highly flexible and easy-to-install Wireless Valve Link.
Number of Stations 54 plus master valve
Type Controller accessory, wireless valve control
- Works with Hunter ICC2 and HCC Controllers and is compatible with Centralus™ and Hydrawise® Software
- Adds up to 54 valves (+P/MV) up to 2,000′ line-of-sight or more with a Repeater
- License-free LoRa Technology enables wireless communication directly to the valve box — no copper field wiring is required
- Combines with conventional ICM or two-wire EZDS Modules for ultimate flexibility
Link Options
WVL-100 Single-station Wireless Valve Link (Antenna included)
WVL-200 2-station Wireless Valve Link (Antenna included)
WVL-400 4-station Wireless Valve Link (Antenna included)
OPERATING SPECIFICATIONS
- Low-profile, waterproof valve box lid mount for field durability
- Requires 1½” diameter hole in valve box lid (hole saw supplied with WVOM)
- Two-way communications confirm field performance
- 900 MHz LoRa radio (North America only)
- 1-, 2-, and 4-station configurations to optimize field installations
- Operates Hunter DC-Latching Solenoids
- Maximum distance from WVL to solenoid: 100′ with 18 AWG wire
- One or two 9 VDC batteries per WVL
- Replace batteries once per season or year
- Solar recharging option with SP-WVL
- Built-in site survey and manual test functions
- Easy, free set up with Bluetooth app (iOS 9.0 or above, Android 5.0 or above)
