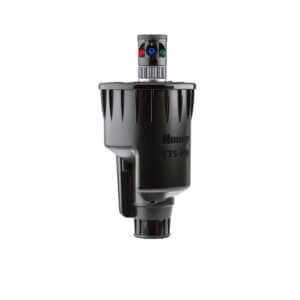

Hunter TTS-885 Golf Rotor With Nozzle, Valve In Head
Hunter TTS-885 Golf Rotor With Nozzle, Valve In Head
Full/Part Circle, Valve In Head
Model: Full-Circle / Part-Circle
Radius: 11.3 to 28.7 m
Flow: 2.02 to 13.54 m³/hr; 33.7 to 225.6 l/min
Pressure: 3.4 to 6.9 bar; 340 to 690 kPa
These rotors have Total-Top-Serviceability, powerful G-800 Series gear drives, and the largest flange compartment in the industry to accommodate all two-way module components.
TTS-800 Series rotors provide maximum uniformity and longevity in the field. The high-torque gear drives are the strongest in the industry, so the challenges of reclaimed water use or poor water quality are mitigated.
An extra-large, fast-access flange compartment comfortably accommodates wire connections and other components. Convenient, no-dig Total Top Serviceability means routine maintenance is a breeze.
Hunter TTS-885
KEY BENEFITS
- Model: GT-885 – True full-circle/adjustable part-circle (60° to 360°)
- QuickCheck™ arc mechanism
- QuickSet-360 arc mechanism
- Dual-trajectory, color-coded nozzles:
- 12 standard trajectory (22.5°)
- 9 low-angle trajectory (15°)
- Nozzle range: #10 to #53
- Exclusive PressurePort™ nozzle technology
- Contour “Back-Nozzle” capabilities
- Ratcheting stainless-steel riser
- Water-lubricated gear drive
- Largest flange compartment in the industry
- Heavy-duty flange compartment lid
- Single-point ¼-turn compartment lid release
- Color-coded control components
- Solenoid and regulator service without depressurization
- Stage 2 oversized filtration system
- Three cable access ports
- Two splice connectors included (DIH Models)
- Serviceable inlet valve seat and seat-seal
- Self-cleaning Filter Sentry inlet valve
