Hunter EZ Decoder

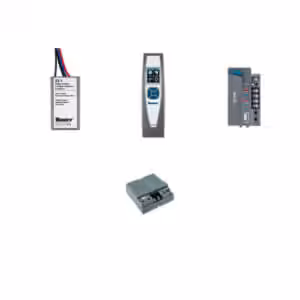

Hunter EZ Decoder System
Bring two-wire technology to more projects than ever before with the revolutionary, low-cost, hassle-free EZ Decoder System for HCC, ICC2, HPC and Pro-C controllers.
HCC and ICC2 Controllers: Up to 54 stations, plus master valve
HPC and Pro-C Controllers: Up to 32 stations, plus master valve (28 stations if two-wire only)
No special wire or connectors required
Allows hybrid operations of conventional and decoder stations
Compatible with any direct-burial wire for maximum flexibility
OPERATING SPECIFICATIONS
- Electrical output on two-wire path: 24 VAC, 50/60 Hz
- Two-wire paths to the field:

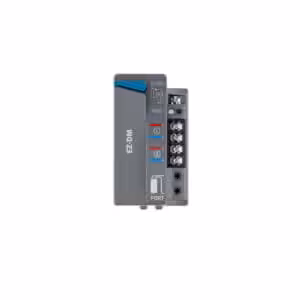

- EZ-DM: 2
- PC-DM: 1
- Wire paths possible up to 3,000′

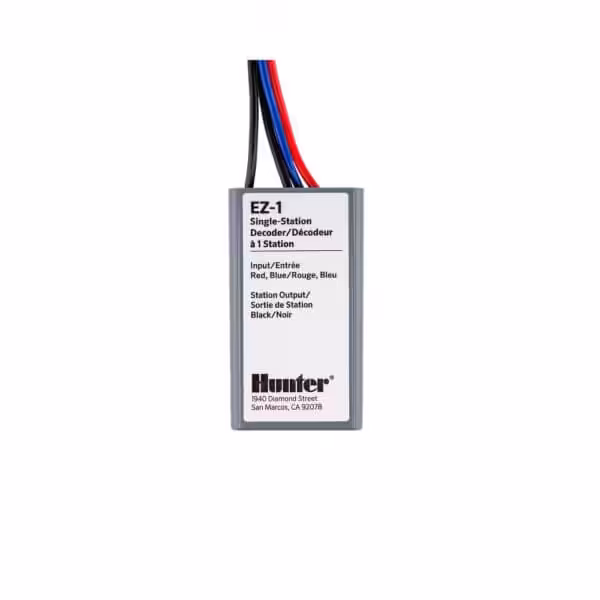

- Each EZ-1 decoder has the capability to activate two standard 24 VAC solenoids
- Approvals: UL, cUL, FCC, CE, UKCA, RCM, Industry Canada
- EZ-1 decoders are IP68 rated, submersible

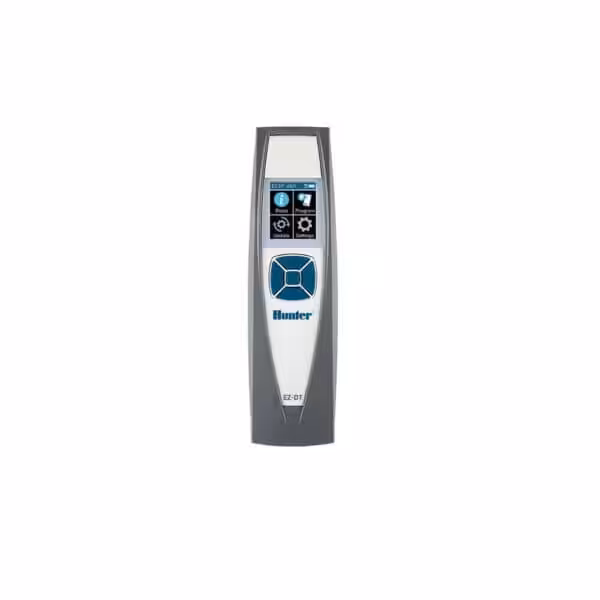

- EZ-DT is IP55 rated
- Warranty period: 3 years
Hunter EZ Decoder
User-Installed Options
- Centralus™ with ICC2 Controllers
- Hydrawise® with HCC HPC Controllers
- ICV or PGV valves
- Pump start relays (PSR)
- DECSTAKE10 Universal Decoder Stake Kit, 10-pack
